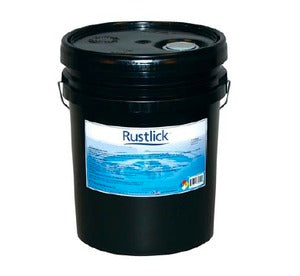

• Rustlick EDM 500 Dielectric Fluid Oil 5 Gallon Electrical Discharge Machining EDM 72055
EDM 500 is a premium synthetic dielectric oil for Electric Discharge Machining (EDM). The transparent, fluorescent green formula is formulated with synthetic raw materials to virtually eliminate skin irritation and is nearly odorless. It has a high flash point (210?F, 99?C) and is resistant to thermal degradation up to 400 amps.

Applications: Electric Discharge Machining

Materials Compatibility: Recommended for ferrous metals, aluminum, brass, bronze, and copper.

Physical Properties:

Color: Fluorescent green

Allowable Burn Rate: 400 amps

Filter Compatibility: All types

Specific Gravity: 0.80

Density:6.7 lbs/gal (802 kg/m3)

Viscosity at 40?C: 3.5 cSt

Flash Point: > 210?F (99?C)

Boiling Point: 300?F (149?C)

Do not dilute

Available in 5 and 55 Gallons

My Store

Rustlick EDM 500 Dielectric Fluid Oil 5 Gallon Electrical Discharge Machining EDM 72055

SKU RUSTLICKEDM5005GAL
$250.00
EDM 500 is a premium synthetic dielectric oil for Electric Discharge Machining (EDM). The transparent, fluorescent green formula is formulated with synthetic raw materials to virtually eliminate skin irritation and is nearly odorless. It has a high flash point (210?F, 99?C) and is resistant to thermal degradation up to 400 amps.

Applications: Electric Discharge Machining

Materials Compatibility: Recommended for ferrous metals, aluminum, brass, bronze, and copper.

Physical Properties:

Color: Fluorescent green

Allowable Burn Rate: 400 amps

Filter Compatibility: All types

Specific Gravity: 0.80

Density:6.7 lbs/gal (802 kg/m3)

Viscosity at 40?C: 3.5 cSt

Flash Point: > 210?F (99?C)

Boiling Point: 300?F (149?C)

Do not dilute

Available in 5 and 55 Gallons

$250.00
Rustlick EDM 500 Dielectric Fluid Oil 5 Gallon Electrical Discharge Machining EDM 72055

EDM 500 is a premium synthetic dielectric oil for Electric Discharge Machining (EDM). The transparent, fluorescent green formula is formulated with synthetic raw materials to virtually eliminate skin irritation and is nearly odorless. It has a high flash point (210?F, 99?C) and is resistant to thermal degradation up to 400 amps.

Applications: Electric Discharge Machining

Materials Compatibility: Recommended for ferrous metals, aluminum, brass, bronze, and copper.

Physical Properties:

Color: Fluorescent green

Allowable Burn Rate: 400 amps

Filter Compatibility: All types

Specific Gravity: 0.80

Density:6.7 lbs/gal (802 kg/m3)

Viscosity at 40?C: 3.5 cSt

Flash Point: > 210?F (99?C)

Boiling Point: 300?F (149?C)

Do not dilute

Available in 5 and 55 Gallons
